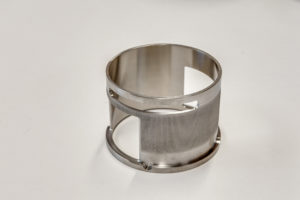

For over half a century, Mallory Industries, Inc has been performing top-notch CNC turning services, meeting extremely tight tolerances down to (+/-) 0.0002 of an inch. We are equipped with six 2-axis CNC turning centers possessing 1/2 of an inch to 20 inch chucking capacities, up to 24 inches between centers. We are an ISO certified CNC machine shop that primarily handles short run or one-off part production, but can also handle high volume, long run production of up to 3,000 units. We specialize in the production of complex machined parts, but can apply our CNC turning operations to custom industrial cam manufacturing. In fact, components we have built have been installed in life-saving medical devices, numerous aircrafts, and industrial equipment.

At Mallory Industries, we take our customer service seriously, owning top-of-the-line quality assurance testing equipment to help us ensure product excellence. We maintain our CMMs, as well as all gages and inspection procedures, under AS9100:2009 compliance – working in a clean, temperature and humidity controlled environment. We also possess business management execution system software to help guarantee on-time delivery. We make certain that our CNC turning and machining operations fully satisfy the needs of diverse industries.

Contact Mallory Industries today for more information about our advanced CNC turning services or to learn more about any of our other superior machining operations.

Capabilities

CNC Turning Capabilities

Machining Processes

Parting/Cutting
Facing
Turning:

  • Contour Turning
  • Form Turning
  • Taper Turning
  • Straight Turning

Threading

  • External
  • Internal

Internal Forming

Knurling
Boring
Gear Hobbing
Broaching
Drilling
Counterboring
Countersinking
Pocketing
Profiling
Reaming
Tapping
Thread Milling

Tolerances

Straightness : ± 0.0002
Concentricity: ± 0.0002

Diameter (outer/inner): ± 0.0002 in
Length: ± 0.0002 in

Part Diameter

Min
1/2 in

Max
20 in

Part Length

Min
1/8 in

Max
24 in

Equipment

Lathe

  • Engine
  • Turret
  • CNC
  • Tracer
Fixturing

Three-jaw chuck
Four-jaw chuck

In-House Fixturing & Tooling

Equipment Capabilities

CNC Control Capabilities
Large Swing Lathe
CAD Design Services

CAM Programming Services
Reverse Engineering

Machinery Axis

2

Secondary Services Offered

Assembly
Drilling
Deep hole Drilling
Tapping
Bending
Threading
Broaching
Counter Sinking
Pressing

Milling
Reaming
Plating
Passivating
Etch and Chromating
Heat Treating
Centerless Grinding
Anodizing

Advantages of Turning

Tight tolerances
Short lead times

Materials compatible

Materials (Metals)

Alloy Steels
Aluminum
Beryllium
Brass
Bronze Alloys
Carbide
Carbon Steel
Cobalt
Copper
Iron

Lead
Magnesium
Molybdenum
Nickel
Palladium
Stainless Steel
Stellite (Hardfacing)
Tin
Tungsten
Zinc

Materials (Exotic & Precious Metals)

Inconel
Invar
Iridium
Kovars
Molybdenum

Monel
Niobium
Palladium
Tantalum

Production Volume

Min
1 unit

Specialty Production Shop
Prototype
Low Volume
Small Run

Max
3,000 units

High Volume
Large Run
Long Run
Large Scale Production Volume Run

Lead Times Available

Quoted on job by job basis
Emergency services available

Rush Services Available

Intended Application

Machine components
Engine components
Turbine components
Hydraulic components
Turbomachinery components
Construction equipment
Shafts
Forgings
Jewelry
Valves

Pins
Thread rod
Fasteners
Spindles
Sockets
Bushings
Spacers
Fittings
Standoffs

Industry Focus

Aerospace
Agricultural
Architectural
Auto/Truck/Transportation
Chemical
Dental
Electronic
Food

Machine Tool
Marine
Medical
Military
Oil Field
Optical
Packaging/Converting
Pharmaceutical

Industry Standards

AS9100:2009
Aerospace Industry Standard
ISO 9001:2008

International Organization for Standardization

File Formats

AutoCAD (DWG,DWZ)
BMP
Bit Mapped Graphics
Catia (CATDrawing,CATPart)
DXF
Drawing Interchange Format, or Drawing Exchange Format
GIF
Graphics Interchange Format
IGES
Initial Graphics Exchange Specification, ANSI file format.

Inventor (IDW, IPT)
JPG or JEPG
Joint Photographic Experts Group
MasterCam (MDX, MC8, MC9, SET)
PDF
Portable Document Format
Pro-E or Pro/Engineer (DRW,PRT,XPR)
SolidEdge (DFT)
SolidWorks (SLDPRT,SLDDRW,SLDDRT)
STEP
Standard for the Exchange of Product Model Data
